QJZ Bearings

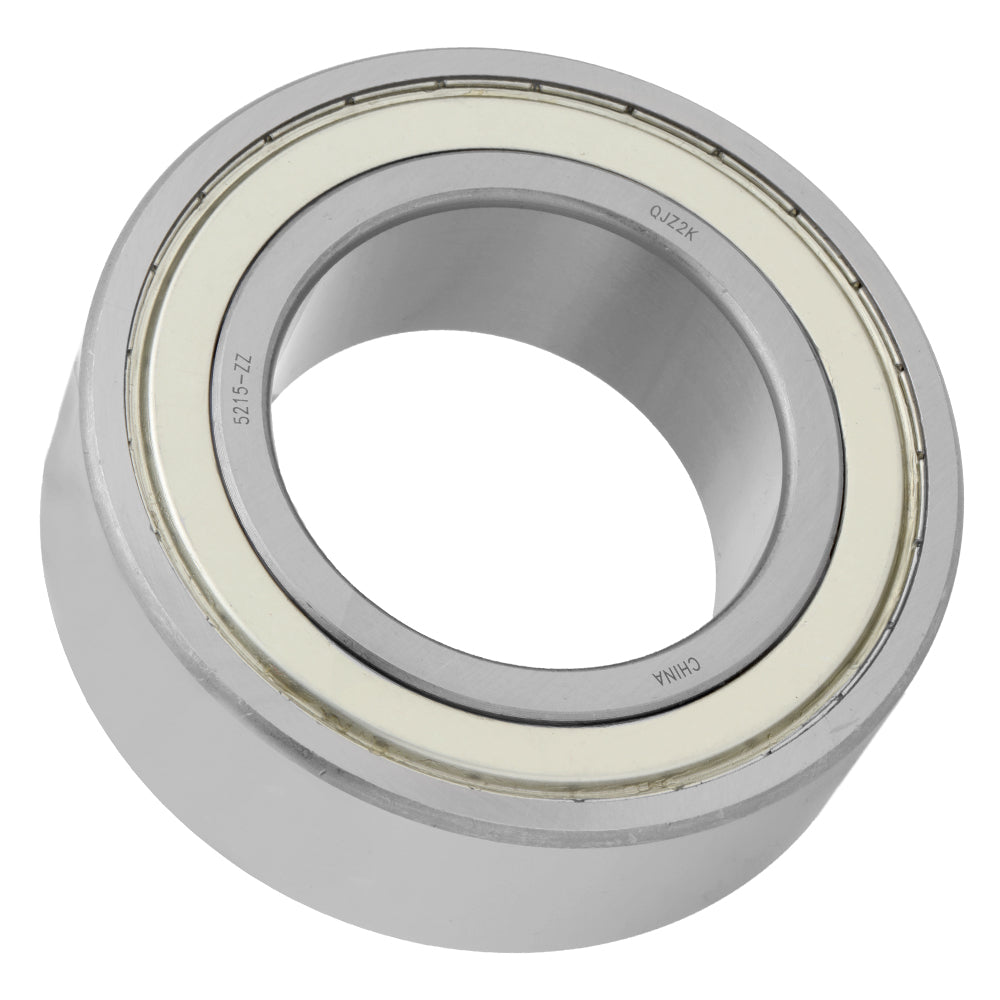

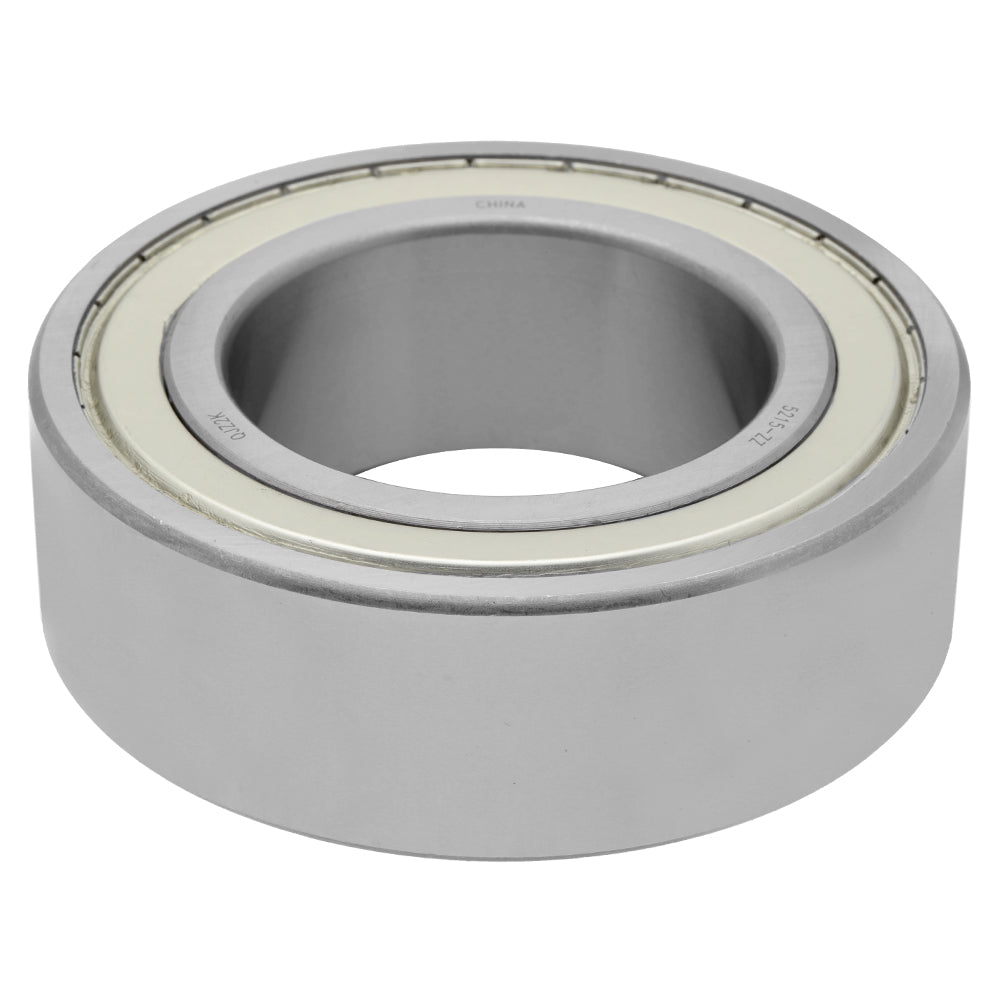

5215 - Angular Contact Ball Bearing
5215 - Angular Contact Ball Bearing
Regular price
$72.00 CAD
Regular price
Sale price
$72.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Premium Angular Contact Ball Bearing Design
The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.
| Part Number | 5215 |
|---|---|
| Inner Diameter (ID) | 2.953 in | 75 mm |
| Outer Diameter (OD) | 5.118 in | 130 mm |
| Width | 1.625 in | 41.275 mm |
Cross Reference (Interchangeable Numbers)
5215Z, 5215B.2ZR, 5215A-2ZJ1, 5215ZZ, 5215CFF, 5215KDD, 5215FF, 5215-2Z5215E2Z, 5215MFF, 55515, 3215B.2ZR, 5215-KFF, 5215A2Z
Applications
- Electric motors
- Pumps and compressors
- Gearboxes and transmissions
- Machine tool spindles
- General industrial machinery
